Rotary drilling rig - Drilling Rig Series - Products

Product Introduction

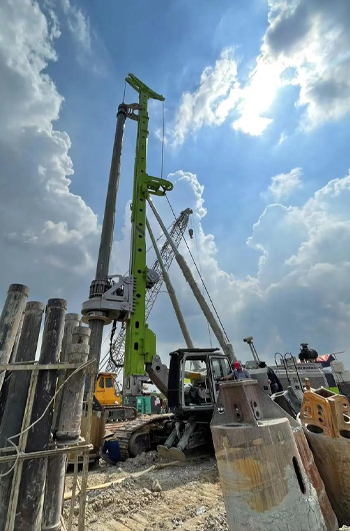

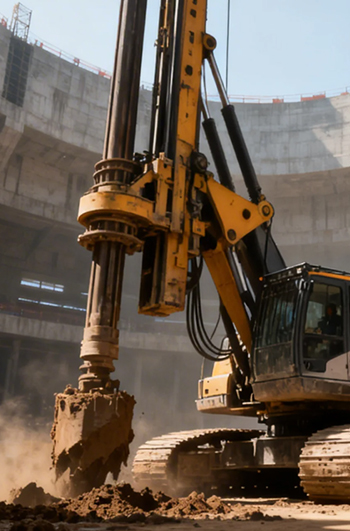

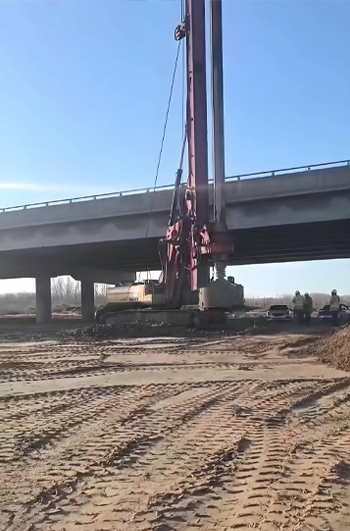

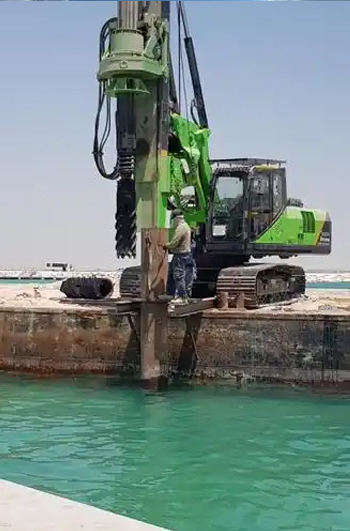

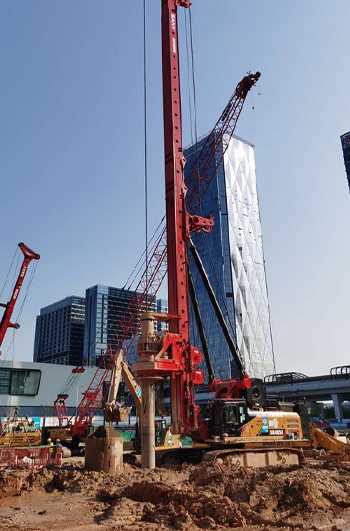

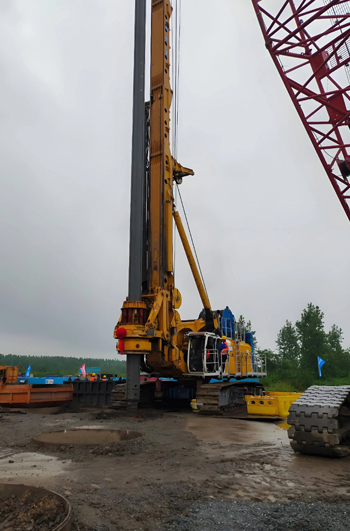

Yugong Rotary Drilling Rig delivers outstanding power, stability, and precision for demanding foundation construction. Featuring a high-torque power head and reinforced crawler chassis, it efficiently handles clay, sand, gravel, and rock. Drilling diameters: 700–2500 mm, depths up to 88 m. Built for global infrastructure and piling projects — reliable, powerful, and adaptable.

Product Feature

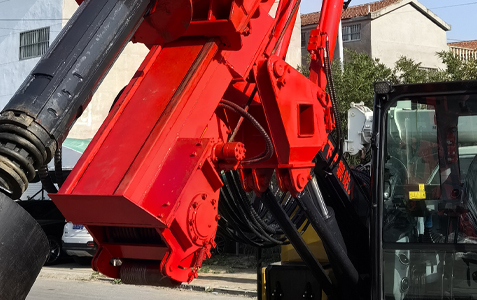

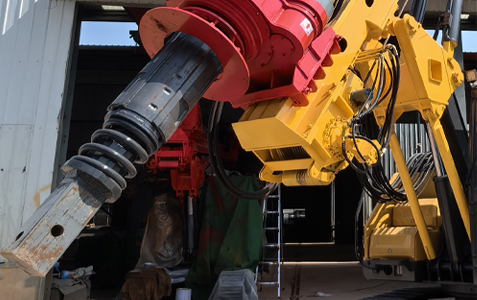

High-Torque Power Head

Up to 240 kN·m torque ensures superior drilling performance even in hard geological conditions.

Deep Drilling Performance

Maximum drilling depth reaches 88 meters, suitable for large-scale foundation works.

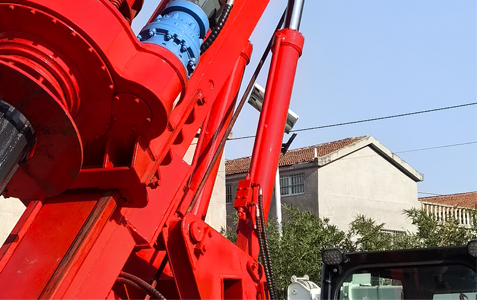

Intelligent Hydraulic System

Optimized hydraulic circuit improves efficiency, precision, and fuel economy.

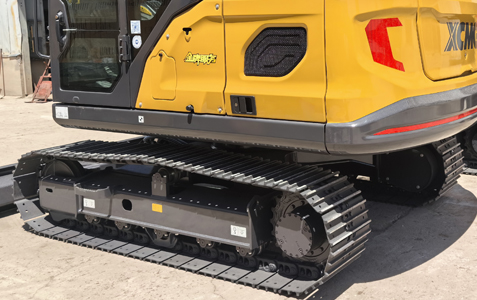

Reinforced Crawler Chassis

Enhanced structural design guarantees stability during heavy-load operations.

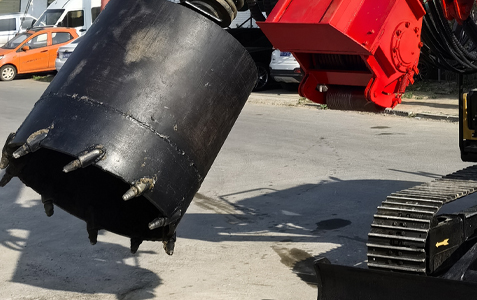

Wide Diameter Range

Supports drilling diameters from 700 mm to 2500 mm for diverse project needs.

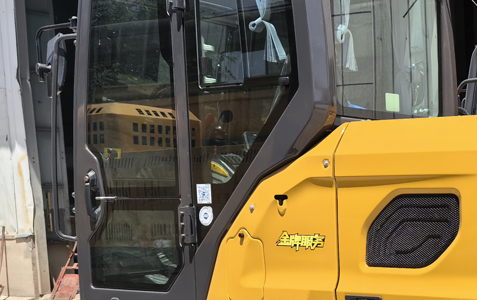

Advanced Control System

Ergonomic control interface ensures safe, smooth, and accurate operation.

Product Parameters

Model	Type	Max Diameter(mm)	Max Depth(m)	Max Torque(kN·m)	Speed(rpm)	Engine Power(kW)	Weight(t)
YG-180	Wheeled	700	15	44	25–45	110	11.5
YG-360	Wheeled	2000	15	27	20–40	110	11.6
YG-20	Crawler	1000	30	35	20–40	110	17.8
YG-515A	Crawler	1400	50	100	17–35	110	22
YG-515B	Crawler	1200	15	100	17–35	110	21
YG-530	Crawler	1500	50	100	17–35	153	30
YG-5120	Crawler	1500	50	120	5–33	173	39
YG-5150	Crawler	1500	50	150	7–13	173	48
YG-5180	Crawler	1800	58	160	7–27	194	58
YG-5360	Crawler	2500	88	240	5–22	298	88
