Product Introduction

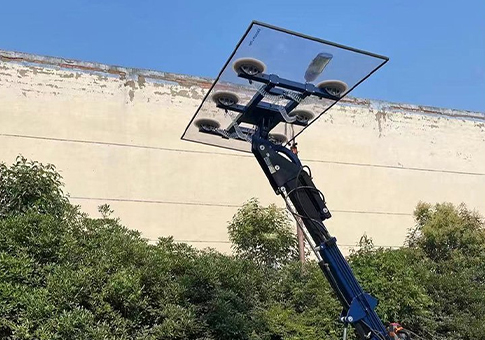

The Glass Vacuum Lifter is designed for safe and efficient glass transportation and installation. Equipped with a powerful vacuum suction system and electric lifting structure, it can easily handle large glass panels in workshops, construction sites, curtain wall projects, and glass processing plants. Its compact design allows flexible movement in narrow spaces, while the stable lifting system ensures smooth and reliable operation. Multiple load capacities are available to meet different project requirements, helping improve efficiency, reduce labor costs, and enhance workplace safety.

Product Features

Strong Vacuum Suction System

Learn More >>

High-quality vacuum suction cups provide stable adsorption force and secure handling of glass panels.

Get a Quote

Electric Lifting Operation

Learn More >>

The electric hydraulic lifting system offers smooth lifting performance and improves working efficiency.

Get a Quote

Flexible & Easy Movement

Learn More >>

Compact structure and durable driving wheels enable easy movement in workshops and construction sites.

Get a Quote

Safe & Reliable Design

Learn More >>

Equipped with safety protection systems to ensure stable operation and reduce operational risks.

Get a Quote

Multiple Models Available

Learn More >>

Different load capacities and lifting heights are available for various glass installation requirements.

Get a Quote

Wide Application Range

Learn More >>

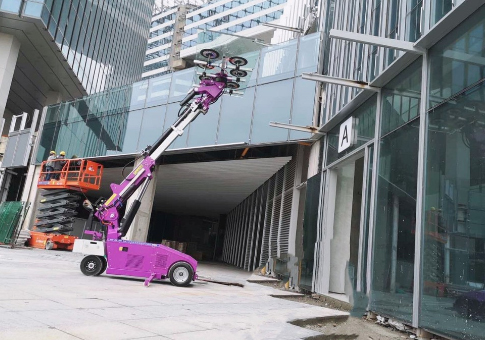

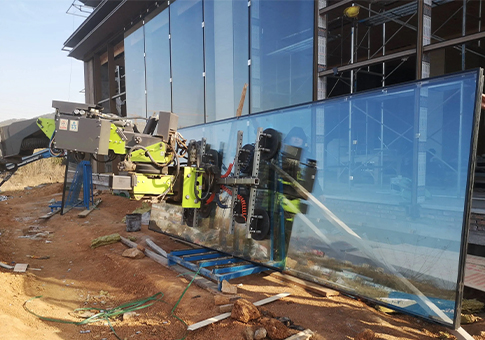

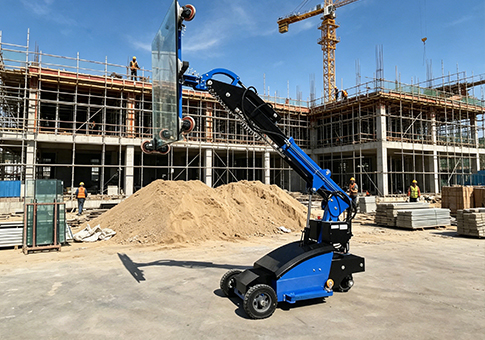

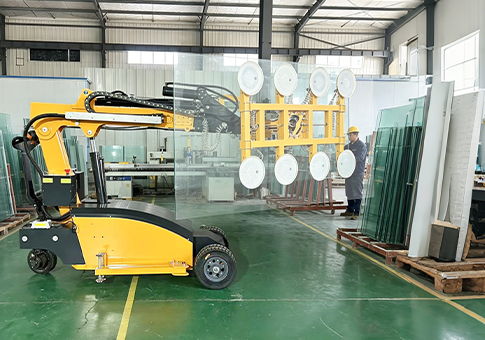

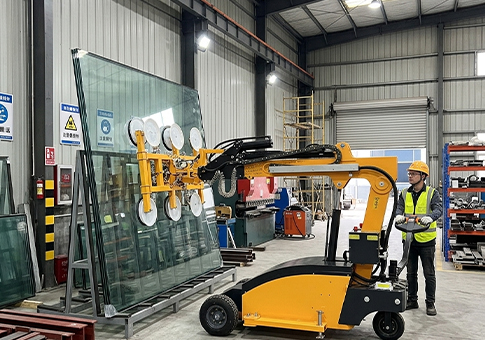

Suitable for glass factories, curtain wall installation, interior decoration, and construction engineering projects.

Get a Quote

Product Parameters

Module Qty	YG-LD-400	YG-LD-500	YG-LD-600	YG-LD-800
Load Capacity（Retracted）	400kg	500kg	600kg	800kg
Load Capacity（Extended）	200kg	250kg	300kg	400kg
Lifting Height	3600mm	3700mm	3700mm	5000mm
Suction Cup Quantity	4 pcs	6 pcs	6 pcs	8 pcs
Suction Cup Size	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Driving Motor	16V/1500W	24V/1500W	24V/1500W	24V/1200W
Lifting Motor	24V/2000W/10L	24V/2000W/10L	24V/2000W/10L	24V/2000W/12L
Drive Wheel	Ø250×80mm	Ø300×100mm	Ø300×100mm	Ø300×100mm
Package Size	2580×1030×1600mm	2580×1030×1600mm	2580×1050×1600mm	3630×1125×1760mm
Net Weight/Gross Weight	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg

Optional Accessories

To meet different working requirements, the machine can be equipped with optional accessories

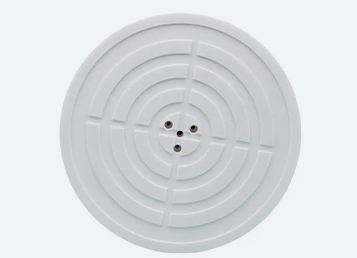

Extra Vacuum Suction Cups

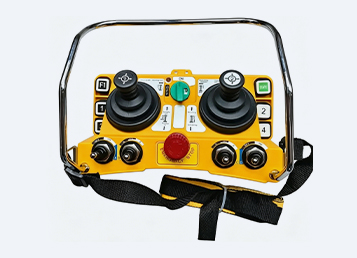

Wireless Remote Control

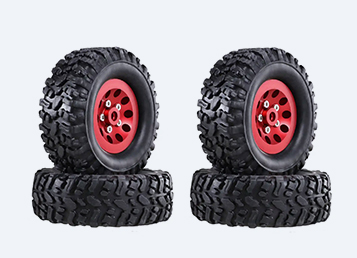

Different Wheel Configurations

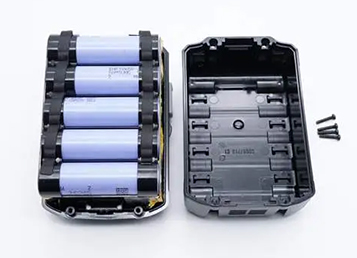

Additional Battery Pack

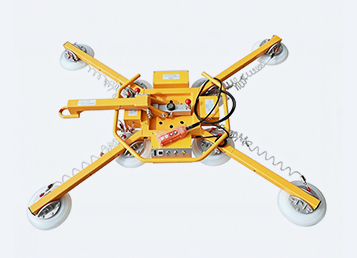

Custom Suction Cup Holder

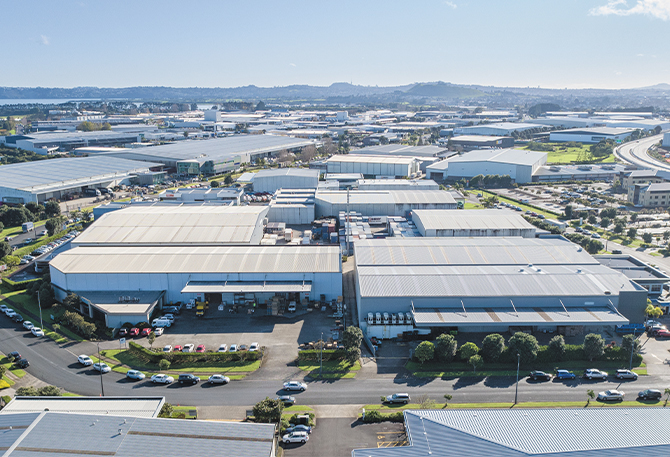

Company Introduction
