To produce egg trays, waste paper is mixed with water and processed into a uniform slurry through the pulping system. The pulp is then pumped to the forming unit and delivered to the molding station, where a vacuum pump absorbs the pulp onto the mold to form wet egg trays. The trays are transferred to the drying system—metal drying line, brick drying room, or natural sun drying—to remove moisture. After drying, a hot-press process can be applied to improve surface smoothness and strength. Finally, the finished trays are automatically counted, stacked, and ready for packing and delivery.

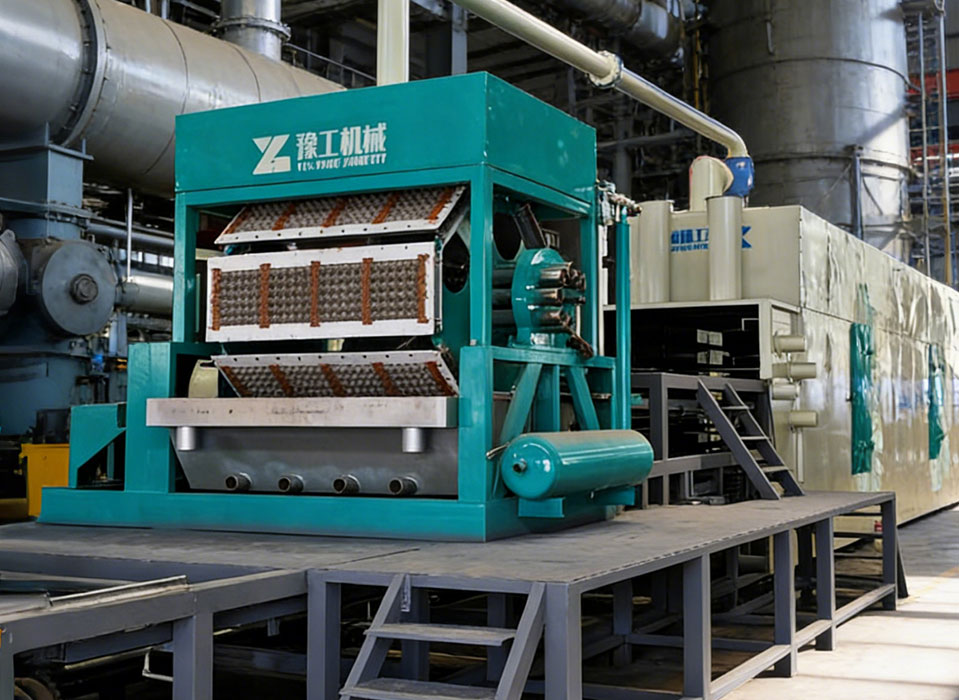

The egg tray machine is an efficient pulp-molding equipment designed to turn waste paper into various eco-friendly trays. It features high automation, stable performance, and low energy consumption. Widely used in agriculture, food packaging, and industrial protection, it provides a sustainable solution for large-scale molded pulp production. Future development will focus on smarter control, higher efficiency, and greater product flexibility.
Our egg tray machine uses low-cost waste paper as raw material, reducing production costs and increasing profit margins while being environmentally friendly.
Easily switch between different molds to produce various products such as egg trays, egg cartons, fruit trays, and coffee cup holders, all with one machine.
With a simple PLC control system, the machine is easy to operate, reducing training time and minimizing operational errors.
We can customize machine and mold according to customer’s requirement.
| Model | Production Capacity | Power Consumption | Weight | Machine Dimensions (LWH) | Paper Consumption | Water Consumption |
| YJ-1000 - 3X1 | 1000 pcs/hour | 38 kW | 2500 kg | 2600 * 2200 * 1900 mm | 80 kg/hour | 160 kg/hour |
| YJ-1500 - 4X1 | 1500 pcs/hour | 38 kW | 3000 kg | 2800 * 2200 * 1900 mm | 120 kg/hour | 240 kg/hour |
| YJ-2500 - 3X4 | 2500 pcs/hour | 55 kW | 4000 kg | 2900 * 1800 * 1800 mm | 200 kg/hour | 400 kg/hour |
| YJ-3000 - 4X4 | 3000 pcs/hour | 60 kW | 4800 kg | 3250 * 1800 * 1800 mm | 240 kg/hour | 480 kg/hour |
| YJ-4000 - 4X8 | 4000 pcs/hour | 95 kW | 7000 kg | 3250 * 2300 * 2500 mm | 320 kg/hour | 640 kg/hour |
| YJ-5000 - 5X8 | 5000 pcs/hour | 95 kW | 8000 kg | 3700 * 2300 * 2500 mm | 400 kg/hour | 800 kg/hour |
| YJ-7000 - 6X8 | 7000 pcs/hour | 120 kW | 10000 kg | 3200 * 2300 * 2500 mm | 480 kg/hour | 960 kg/hour |
You have three options for egg tray production lines based on your requirements. Contact us for the latest price and customized solutions.

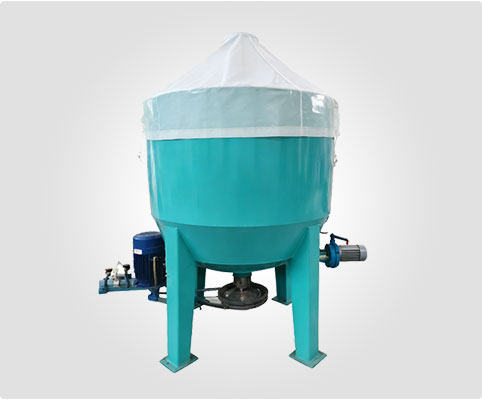

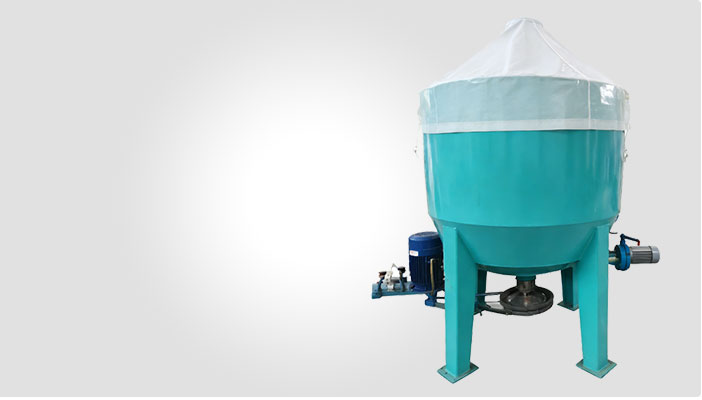

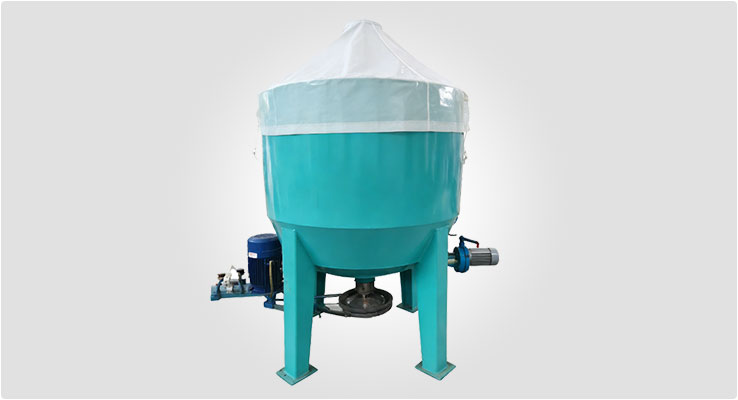

Pulping System

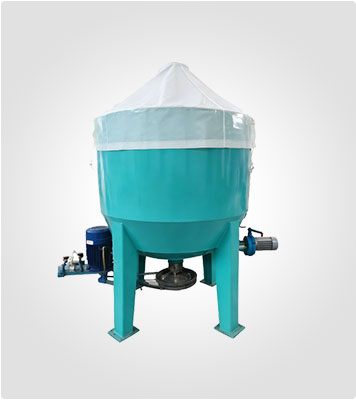

Waste paper is mixed with water in the hydrapulper and processed through pulp adjustment and supply tanks. The pulp is refined into a uniform slurry, and water is filtered and recycled for reuse.

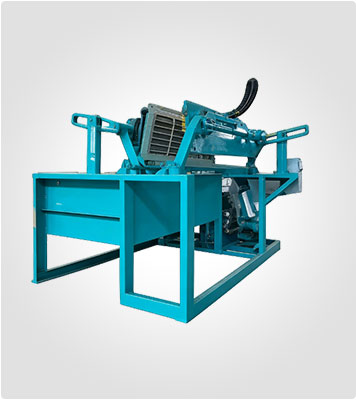

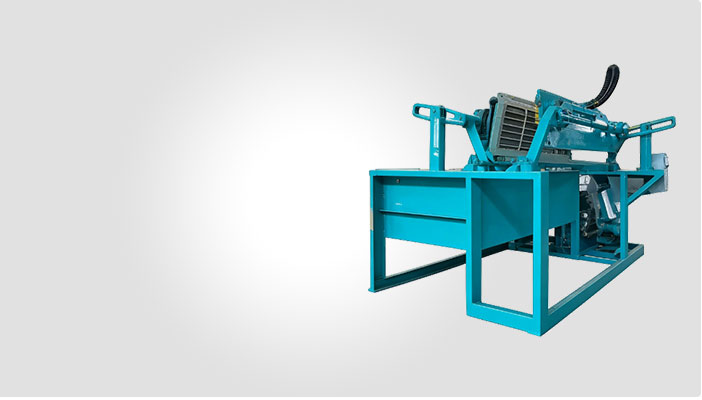

Molding System

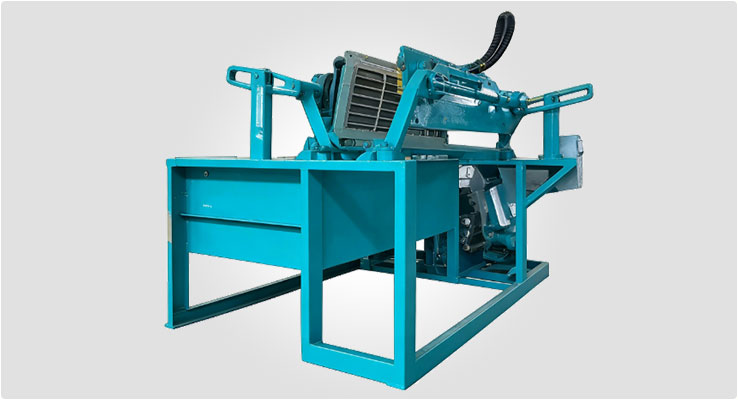

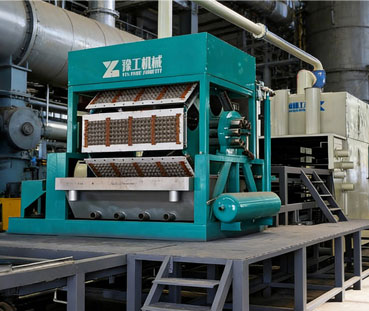

The prepared pulp is pumped to the forming machine. With the help of vacuum suction and compressed air, the pulp is shaped into wet egg trays through precision forming molds.
Pulping System
Waste paper goes through hydrapulper → pulp adjustment → pulp supply → water recycle system to create consistent, mold-ready pulp.
Molding System
The pulp is delivered to the forming machine, where vacuum pumps and compressed air work together to form the wet trays.

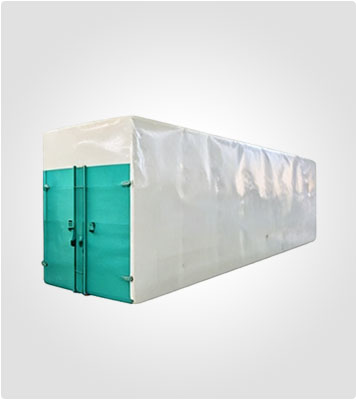

Drying System

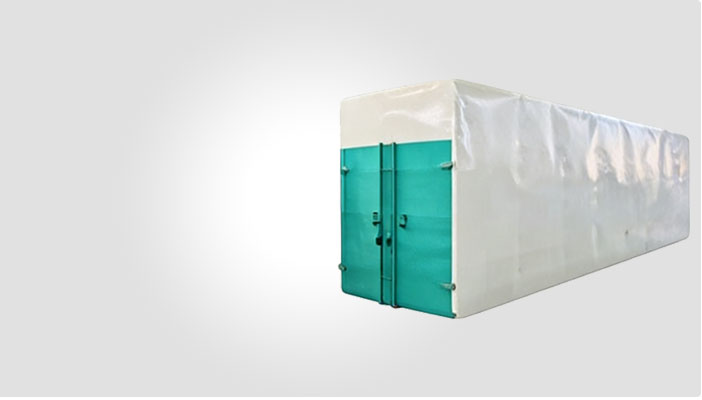

Wet trays are transferred into the drying product line. The continuous heating process removes moisture evenly and efficiently, producing fully dried trays.
Pulping System
Through hydrapulper, pulp adjustment tanks, pulp supply, and water recycling, waste paper is converted into stable and uniform pulp.
Molding System

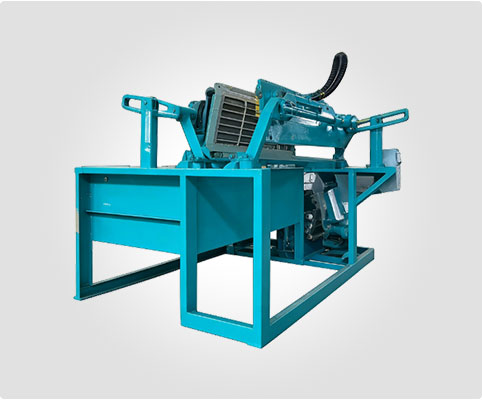

The forming machine uses vacuum suction and compressed air to shape the pulp into wet egg trays with high accuracy.
Drying System

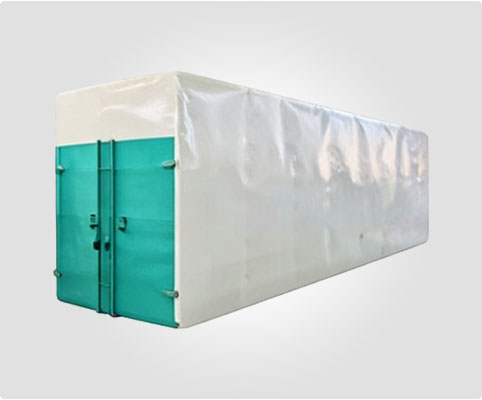

The wet trays pass through a continuous drying line to remove moisture, ensuring uniform drying and stable tray structure.

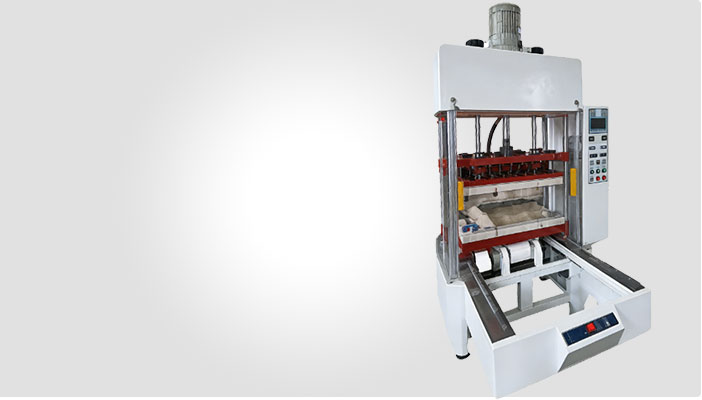

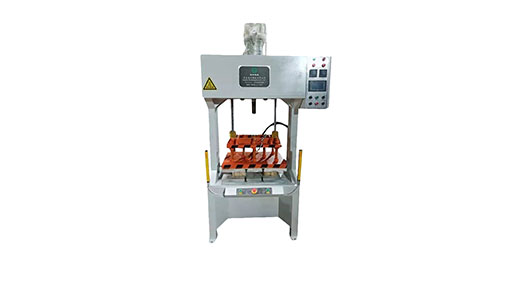

Hot Pressing System

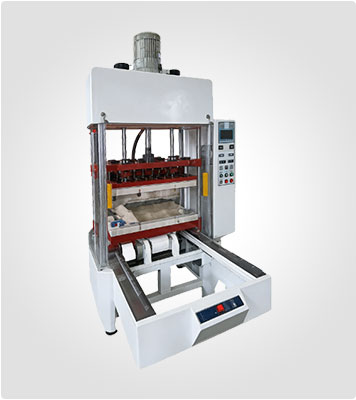

The dried trays are then pressed by a hot press machine to improve surface quality, stiffness, and appearance, producing premium-grade products.

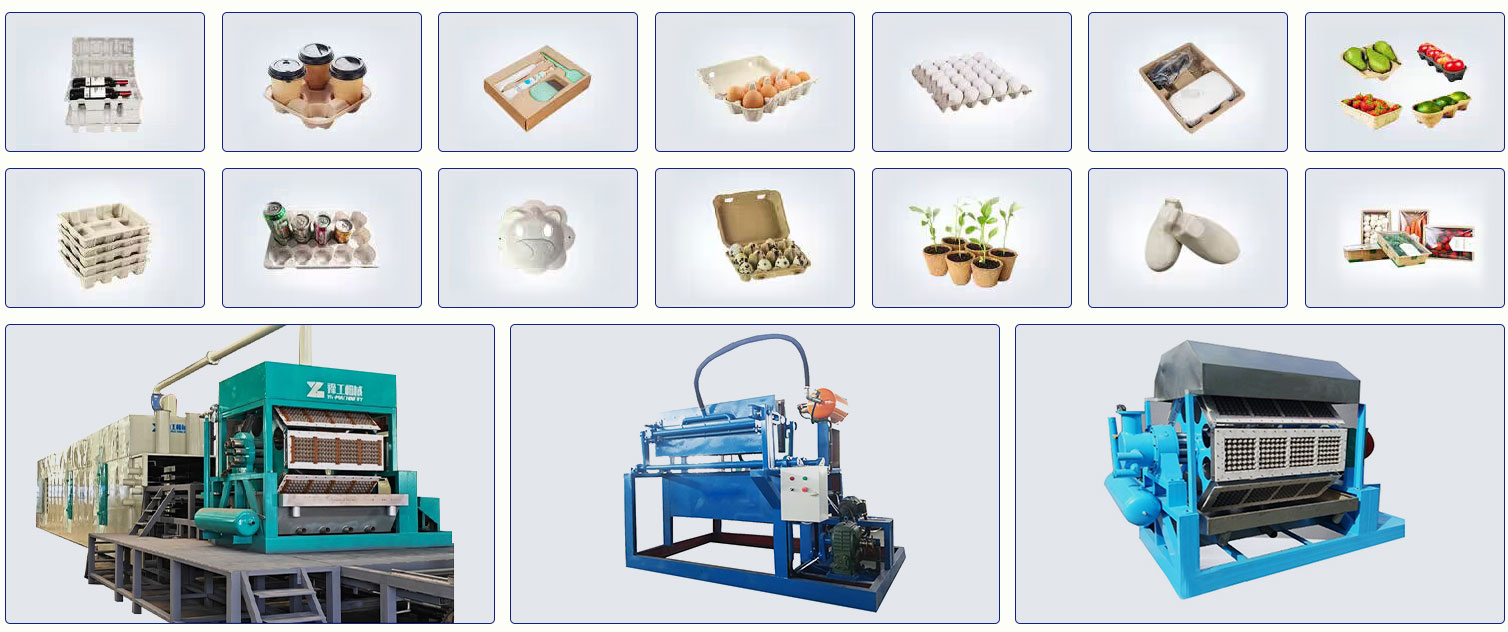

Our machine can produce various pulp-molded trays, including egg trays, fruit trays, coffee cup trays, and other customized packaging trays. In addition to standard 30-cell egg trays, it also supports the production of different shapes and sizes to meet diverse packaging needs across multiple industries.

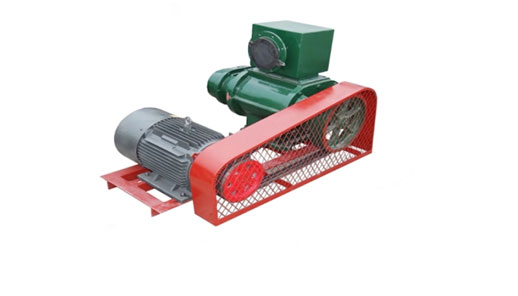

Vacuum Pump
Screw Air Compressor
Thermoforming Machine
Baler

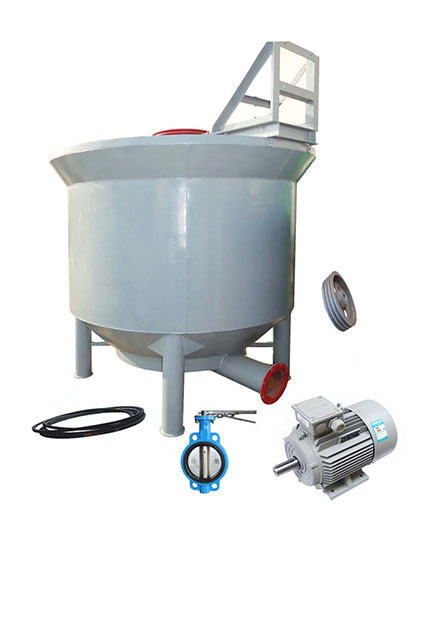

Hydrapulper
